Mini Foam Pump

Mini Foam Pump Product Description
Product Overview

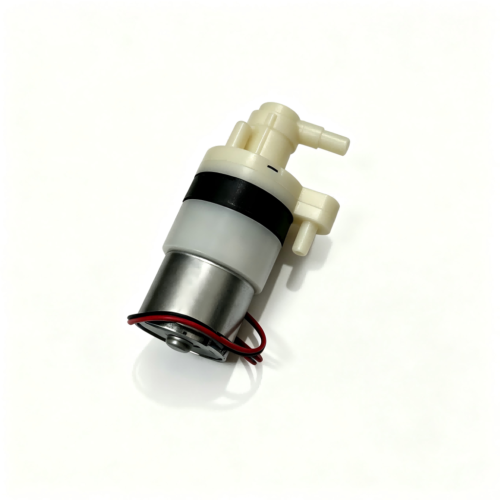

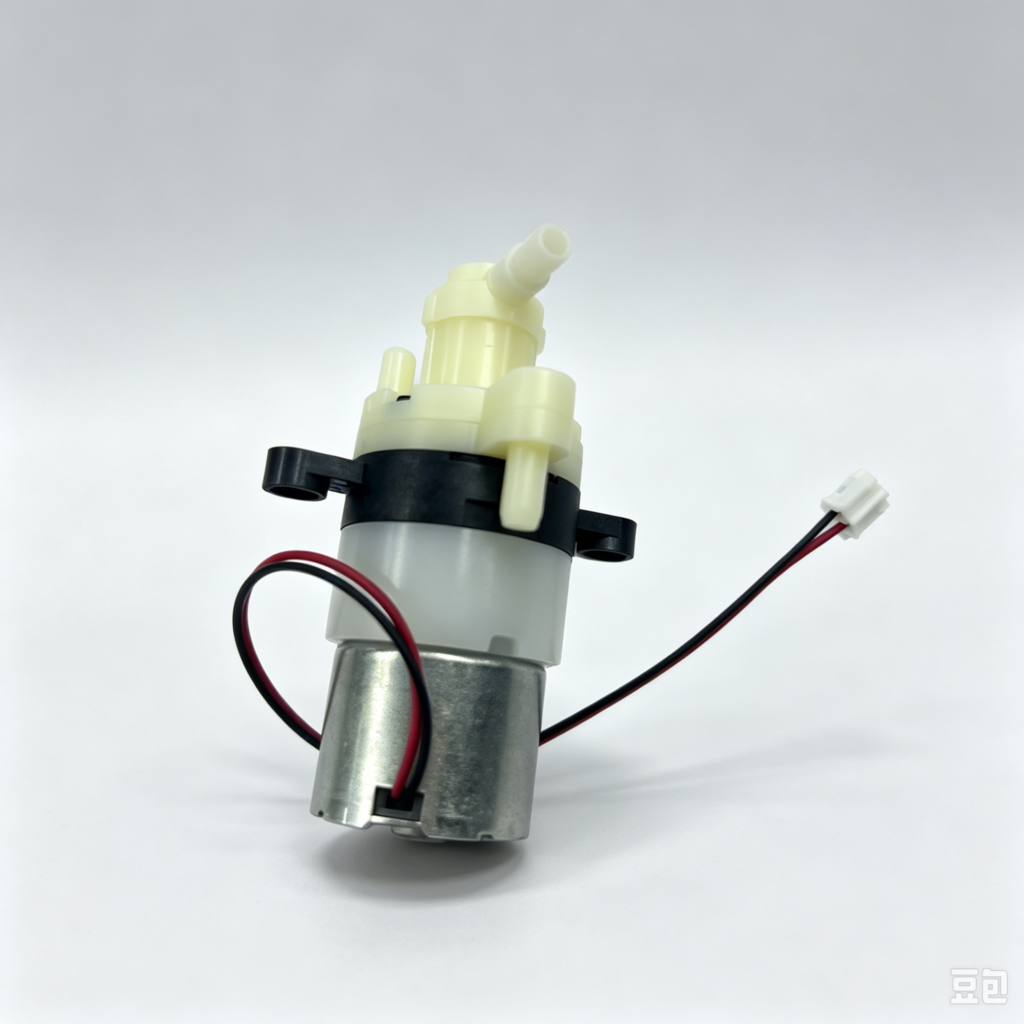

This DC 3.7V mini foam pump is a compact dual-purpose micro pump supporting both water pumping and air inflation. Designed with no-ear-style and ear-style liquid outlets, it features a lightweight integrated structure combining engineering plastic pump head, rubber sealing ring and stainless steel motor housing, delivering stable liquid & air output with low noise performance. Ideal for small portable appliances, foam dispensers, mini cleaning devices and small inflatable equipment.
Key Features
1. Dual-Function
Design Supports water pumping and air inflation two-in-one function, versatile for multiple small equipment applications.
2. Stable 3.7V DC Drive
Rated DC 3.7V working voltage, wide operating voltage range from 3.3V to 4.2V, compatible with common lithium battery power supply systems.
3. Excellent Fluid Performance
No-load water flow reaches ≥70mL/min; maximum output air pressure up to 26KPa, stable continuous output without pressure drop.
4. Low Noise Operation
Working noise ≤65dB under standard test conditions, quiet operation without harsh buzzing, suitable for household portable devices.
5. High Durability & Long Service Life
Passes 50,000 on-off cycle aging test; resistant to extreme temperature & humidity environments. Continuous long-hour operation will not cause motor overheating (max motor surface temperature below 60℃).
6. Reliable Sealing & Solid Structure
Built-in high-quality rubber sealing components to prevent liquid leakage. Stainless steel motor casing plus reinforced plastic pump head, anti-drop and anti-tensile wire terminals, strong mechanical stability.
7. Wide Adaptable Working Environment
Operates normally at 5℃~45℃ ambient temperature; storage range covers -20℃~60℃, adaptable for indoor and portable outdoor equipment.

Core Technical Specifications
Model: FE-BH320-3.7V
Product Name: Mini Foam Pump without Ears (with ears)
Rated Voltage: DC 3.7V
Operating Voltage Range: DC 3.3V ~ 4.2V
Max Load Current: ≤850mA (water pumping mode)
No-load Water Flow: ≥70mL/min
Max Air Output Pressure: ≥26KPa
Noise Level: ≤65dB
Service Life: 50,000 working cycles
Working Temp: 5℃ ~ 45℃
Storage Temp: -20℃ ~ 60℃
Main Materials: Engineering plastic, stainless steel housing, SUS1006 screws, rubber seal, DC micro motor
Wide Application Scenarios
Portable foam washing dispensers & facial foam devices
Mini handheld cleaning machines
Small inflatable toys & portable inflator tools
Compact water circulation mini equipment
Small household beauty & skincare appliances
Portable lithium battery powered small fluid supply devices
Packaging Info
40 PCS per foam inner tray
240 PCS per export outer carton (6 foam trays per carton) Each product is labeled with model, product name, rated voltage and batch number for easy inventory management.
