4058GW-gear motor
4058GW DC Worm Gear Motor, 12V / 24V DC optional, high torque low speed reduction motor, self-locking worm gearbox, widely used for vending machines, automation equipment.
Request a Quote
Enter the quantity you need and add to your quote list for pricing inquiries.
Description
Product Description

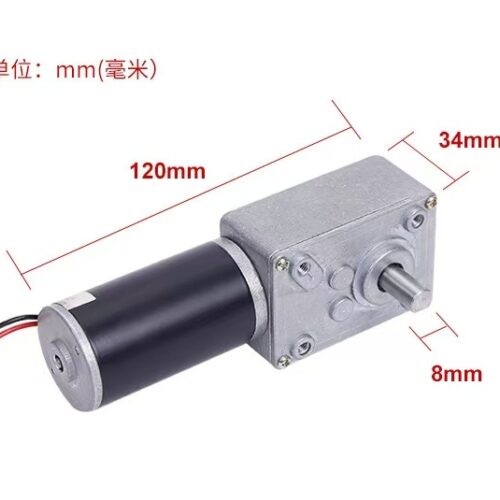

Name: FE-4058GW Worm DC Gear Motor
This 4058GW series worm gear DC motor adopts worm gear reduction structure, featuring excellent self locking performance, high output torque and stable low speed operation. Two voltage options: 12VDC and 24VDC. Multiple gear ratio/speed versions are available to meet different speed torque requirements.
Key Features
✅ Worm gear reducer with self locking function, output shaft can hold position when power off ✅ High strength metal gear box, durable structure, long service life
✅ Multiple speed variants: 5 285RPM no load speed for selection
✅ Stable running, low noise, reliable performance
✅ Two power supply: 12V DC / 24V DC for different application scenarios
✅ Compact size, about 350g weight, easy for equipment installation
Main Applications
Perfect for automatic vending machines, smart lockers, rotating displays, home appliances, small automation devices, robotics actuators and other low speed high torque driving projects.
Specifications Reminder
Voltage: 12VDC / 24VDC Optional
Weight: Approx. 350g
Wide range of rated speed & rated torque options, please refer to our parameter table for detailed data.
Custom speed and voltage requirements are welcome.

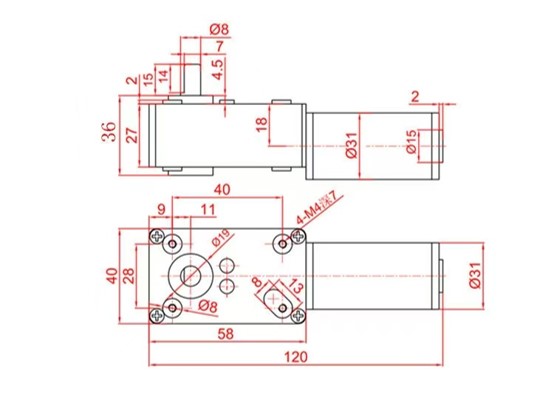

Outline Drawing:
