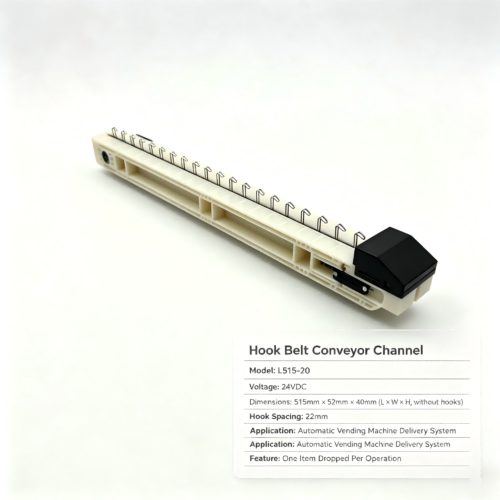

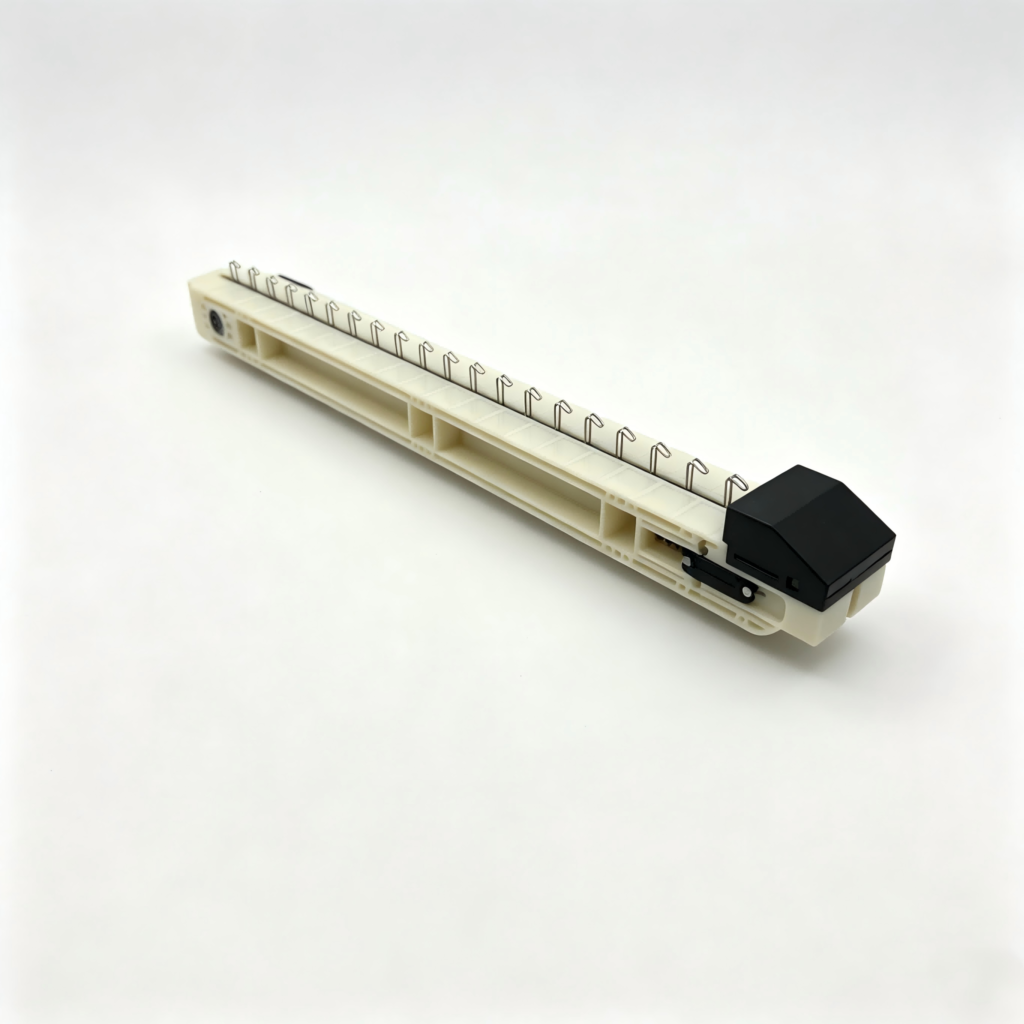

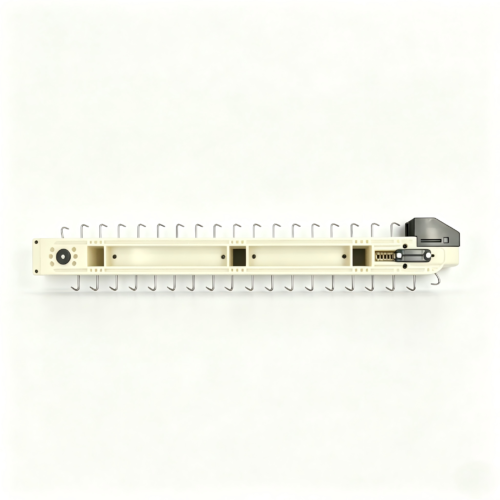

Hook Type Vending Machine Dispensing Track

Product Introduction
This hook type dispensing track is the core dispensing part for hook style vending machines. Goods hang on metal hooks. Each drive cycle releases exactly one item. Widely used for hanging snacks, sachet goods and various hanging small merchandise for unattended retail business.
Features
• Precise single item dispensing:
Only one item drops per trigger, avoid multi dispensing or missing goods.
• Robust durable build: High strength ABS plastic housing plus reinforced metal hooks for long term commercial operation.
• Easy installation: Modular integrated unit, simple wiring. Multiple tracks can be assembled side by side to expand selling positions.
• Low maintenance cost: Simple mechanical structure, easy disassembly for repair and cleaning. • Large capacity: 22 mm hook pitch, up to 20 items per single track, reduces restocking frequency. • Wide compatibility: Works for sachet snacks, hanging ornaments and goods with hanging holes.
Specifications
Overall Dimension: 515mm(L) × 52mm(W) × 40mm(H) (see below drawing)
Model: L515-20
Voltage: 24VDC
Hook Pitch: 22 mm
Max loading per track: 20 items
Material: ABS engineering plastic + metal spring hooks
Working mode: Electric drive, release 1 item per operation
Application Automatic vending machine, unmanned retail cabinet, self service kiosk.

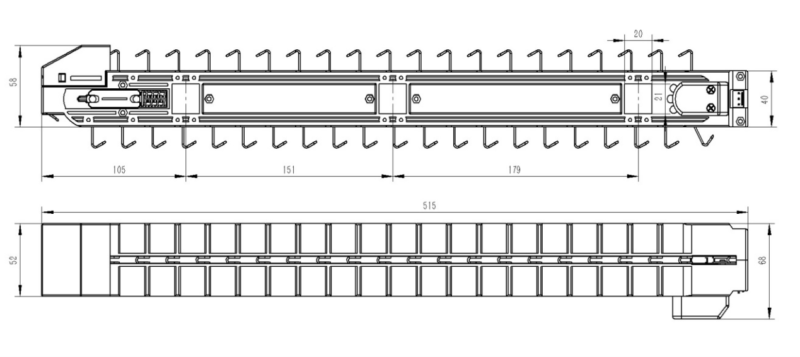

drawing:
